DeWalt Head Drive Pins Spec Sheet

Drive pins with a 0.300" diameter head are designed for permanently fastening a fixture to concrete, concrete over steel deck, concrete masonry walls and A36 or A572 / A992 structural steel. The fasteners are manufactured with a 0.145" diameter shank in various lengths. Knurled shank designs are available for installations in thick steel base materials. A plastic flute is mounted on the pin shank to retain the drive pin in the barrel of the tool and provide guidance during the driving operation. The fasteners are also available in with a mechanically galvanized (MG) coating for use in treated lumber.

General Application & Uses

• Attaching light gauge steel to concrete, concrete over steel deck, concrete masonry or steel
• Attaching wood members to concrete, concrete masonry or steel
• Attaching accessories, fixtures and components to concrete, concrete over steel deck, concrete masonry or steel
• Sill plate anchorage

OVERVIEW

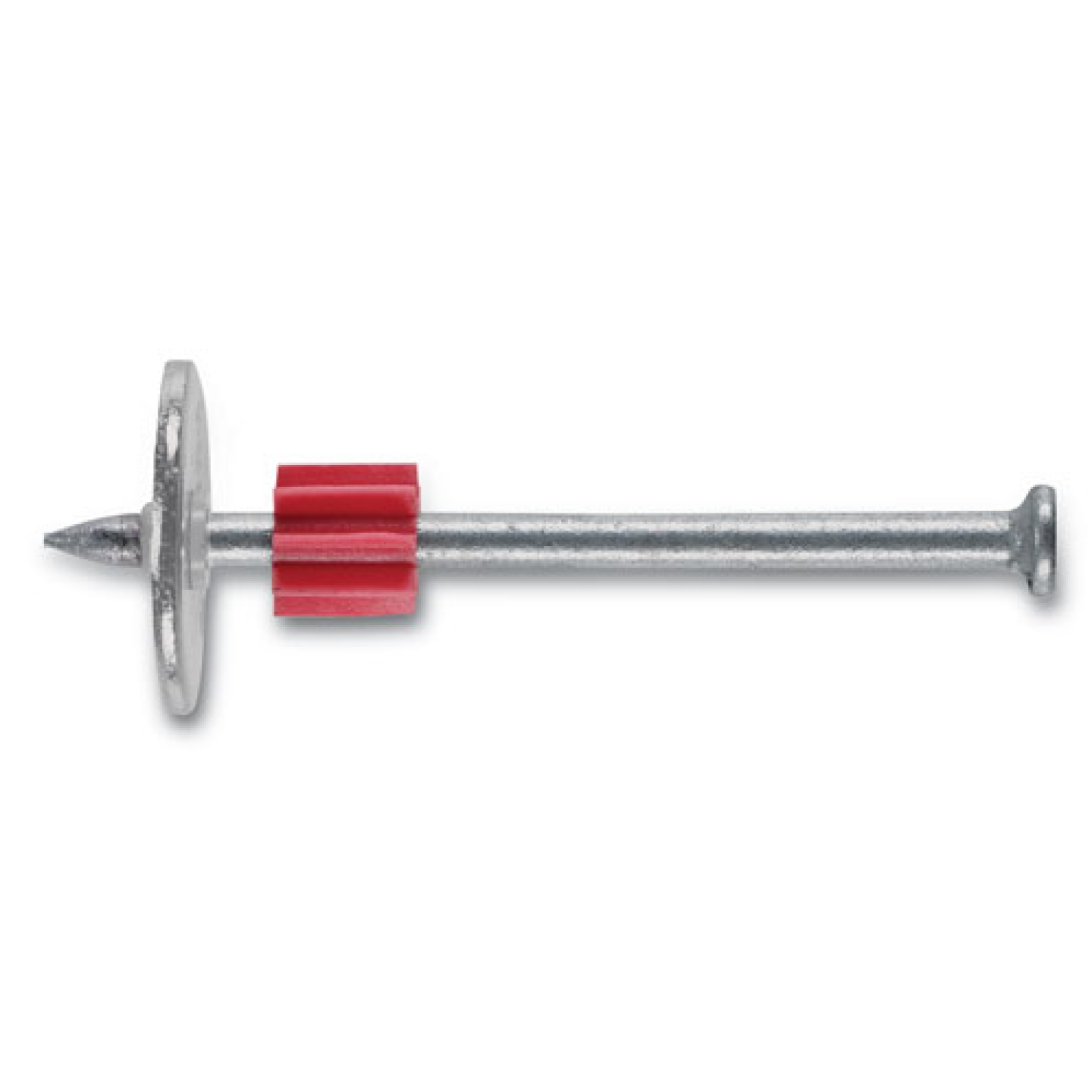

.300 Head Drive Pin with Washer - To provide resistance to pullover, these pins are available with preassembled 14 gage (0.075") metal washers in various diameters. The insulation washer has a thickness of 0.035".

• Shank Length: 2"
• Shank Diameter: 0.145"
• Standard Box: 100
